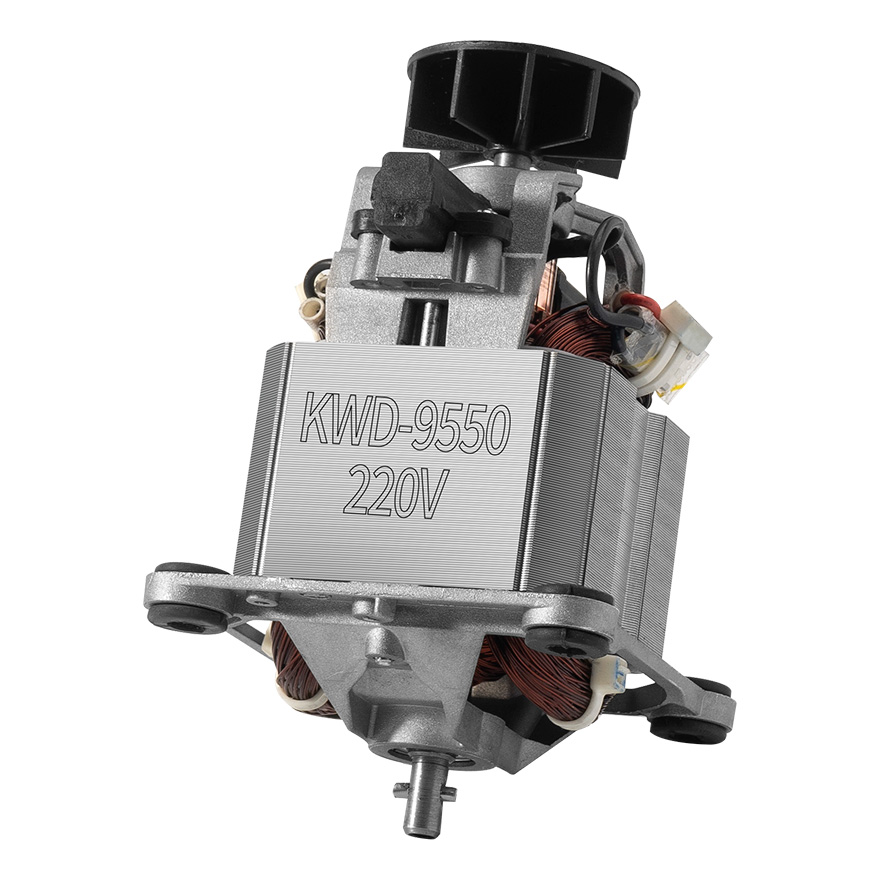

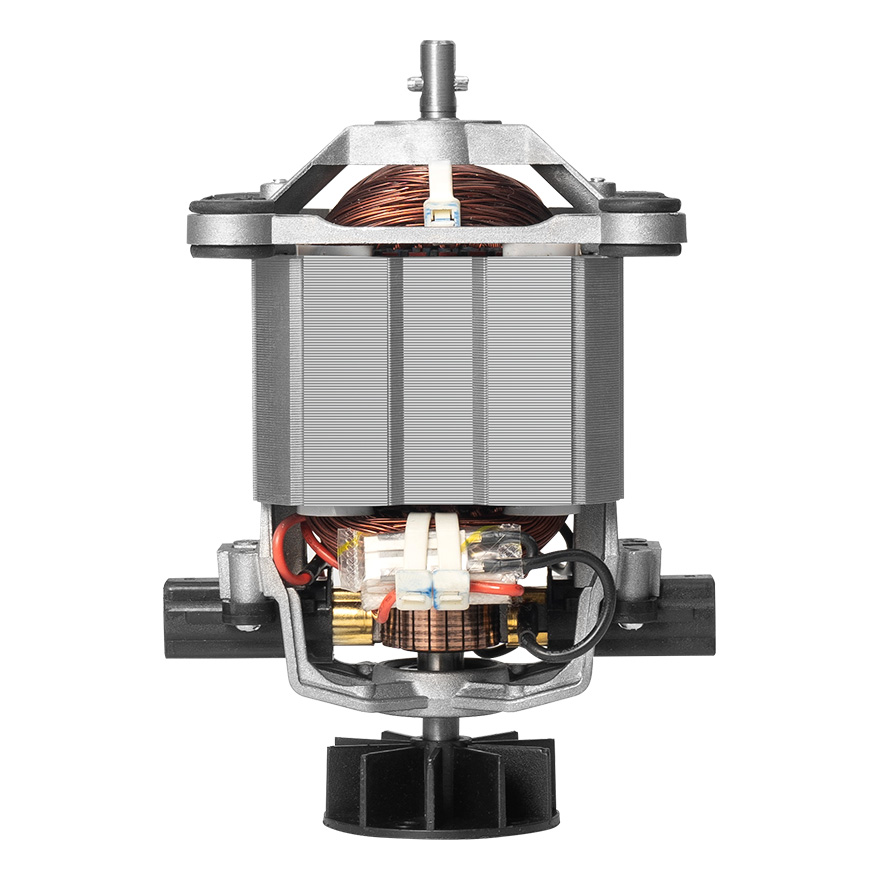

    KWD-9550
    ConfigurationCopper rotor
    No-load speed27000rpm15%
    Working voltage220VAC
    Load power450-1200W15%
    Rated frequency50Hz
    Load current4.7A15%
    Insulatio levelClass B
    Load speed14000rpm15%
    Spark levelLevel 2
    Pressure1800V·1S·1mA
    No-load power450W15%
    Motor steeringCCW
    No-load current1.80A15%
    Thermostat KW250V 5a 125℃
    Lead

    CCC 0.5mm² 105°C L=280mm black,

    6.3*8 with locking terminal


    Consult Now
      Contact Hotline：139 2775 7028

    • Product Details Page

      1.The motor is suitable for4L, 5L, 6L wall breakers

      2.The motor shaft can be customized according to the customer's requirements

      3.The motor can be designed with parameters according to customer requirements

      4.The motor 220V/110V
